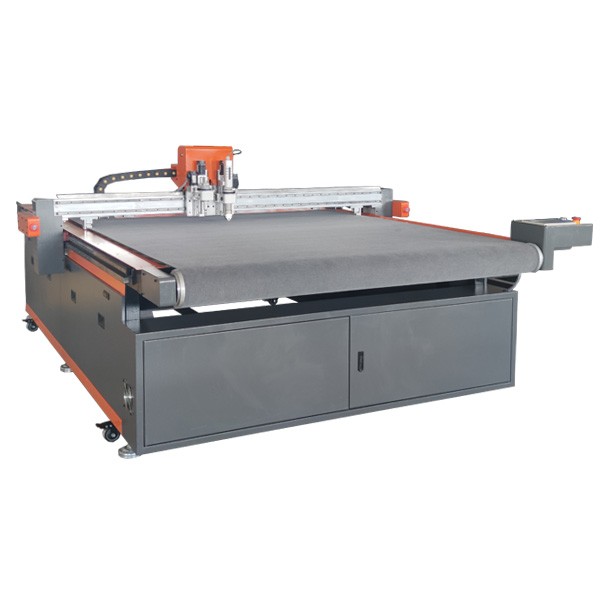

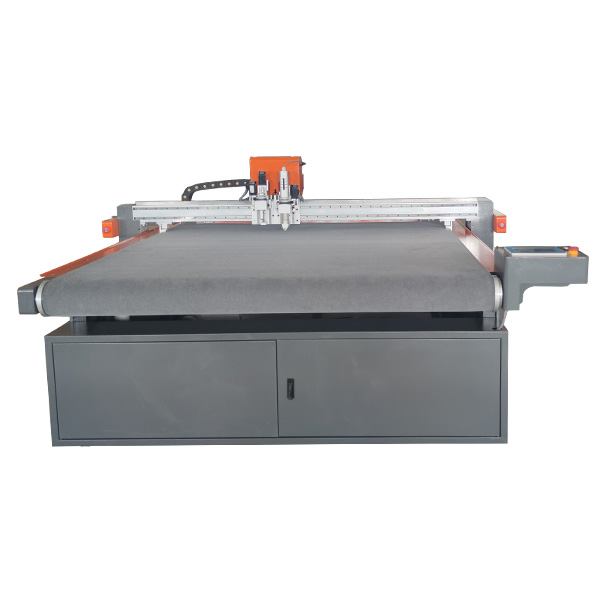

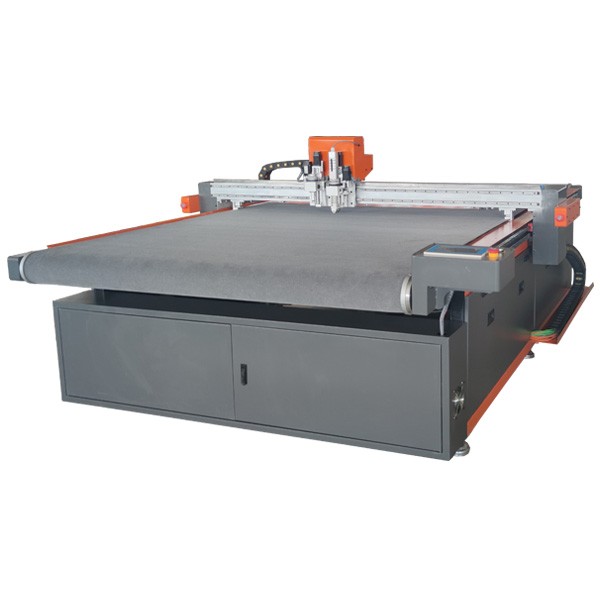

Auto Feeding Vibrating Knife CNC Cutter Digital Oscillating Cutting Machine for Soft Material

Auto Feeding Vibrating Knife CNC Cutter Digital Oscillating Cutting Machine for Soft Material


Auto Feeding Vibrating Knife CNC Cutter Digital Oscillating Cutting Machine for Soft Material



CNC cutter features advanced oscillating knife cutting technology. It is widely used in textile, packaging, crafts, toy manufacturing, advertising, and other industries. Only need to transfer the designed graphics to the computer, CNC oscillating knife cutting machine can automatically and accurately cut a variety of materials. No need for molds, high processing accuracy, high efficiency, neat and smooth cutting edges, to meet the cutting requirements of complex graphics.


Model1325 / 1615 / 1625 / 1630 / 1830

Rated voltage

380V 3 phase , 220V 3 phase, 220V 1 phase

Table

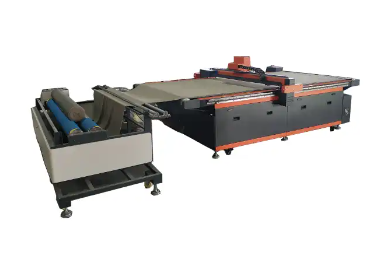

vaccum working table, with auto conveyor table

Multi-functional Cutting Head

Replaceable oscillating knife

Safety

High sensitivity infrared induction (optional)

Moving Speed

Max. 1200mm/s

Cutting Speed

Max. 800mm/s(please set the speed according to the material)

Material Applicable

Corrugated paper, fabrics, felt, PVC expansion sheet, KT board, foam board, grey paperboard, cardboard, vehicle sticker, adhesive sticker etc.

Cutting Depth

Max 30mm (depends on the material)

Material Fixing Method

Strong power vacuum absorption and intelligence Partition

Resetting Positioning Accuracy

Max 0.01mm

Mechanical Precision

Max 0.02mm

Drive System

Steel Simultaneous Belt, Japna servo motor,HIWIN guide rail,synchronous belt, Taiwan ball screw

Control System

Kinco or Trocen control system

Operation Mode

Op worktable + data output control software (The op worktable has two type: connected and separated)

Display

English LCD

Command

HP-GL compatible format

Buffering Capacity

Standard--2GB

vaccum pump

9KW vaccum pump


With the continuous development of numerical control technology, more and more customers choose to use smart cutting equipment instead of workers. CNC pendulum cutters are widely used in the cutting of soft materials. It uses advanced oscillating knife cutting technology to select different tools according to material thickness and hardness. It can meet a variety of flexible material cutting.


Advantage

Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance.

Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life

The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.

Digital cutting machine was designed easy to install, set-up and operate.

Being equipped with infrared sensor and emergency stop devices, guarantees safety.

Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine
