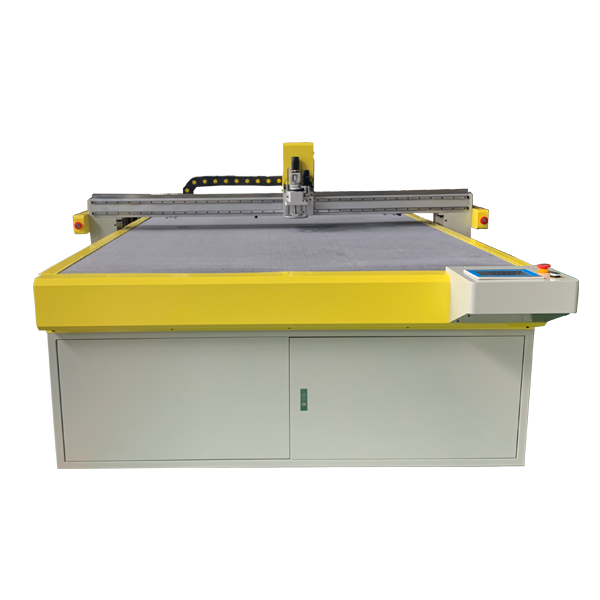

Fixed Table Oscillating Knife CNC Cutting machine Digital Vibrating Cutter for Flexible Material

Fixed Table Oscillating Knife CNC Cutting machine Digital Vibrating Cutter for Flexible Material


Fixed Table Oscillating Knife CNC Cutting machine Digital Vibrating Cutter for Flexible Material


CNC cutting machine adopts a high-frequency pneumatic oscillation tool cutting flexible materials. Reasonable and advanced mechanical structure design, combined with professional sealing industry intelligent processing software, to meet the high precision, high speed and high-quality cutting.

Effectively solve the problems of low production efficiency in the sealing industry, difficulty in recruiting and cutting workers, low material utilization rate, and variable size and shape, and improve the market competitiveness of customers in the sealing industry!

vibrating cnc cutter.jpg

With the continuous development of numerical control technology, more and more plants have chosen to use intelligent cutting equipment instead of workers. CNC oscillating knife cutting machine is a kind of CNC machining equipment widely used in various industries. It adopts advanced oscillating knife cutting technology and can choose different tools according to materials. It can meet the cutting of non-metallic such as asbestos sheet, asbestos rubber sheet, graphite composite sheet, rubber, and PTFE.

CNC oscillating knife cutter has 4 advantages:

1. More flexible; the automatic cutting machine does not need a mold, only need to import the processing data (PLT, DXF, AI format) into the system, can cut and can modify the size and shape.

2. Save materials; automatic nesting software can complete typesetting quickly and accurately, without manual nesting. After actual testing, using an automatic cutter saves more than 10% of material compared to manual cutting.

3. Guarantee product quality; CNC cutting is more precise and meets the high-precision cutting requirements of flexible material.

4. Reducing the dependence of production on labor; CNC cutting machine operation is very simple, low requirements for workers, solving the problem of high worker costs and difficulty in recruiting workers.

Model

1325 / 1615 / 1625 / 1630 / 1830

Multi-functional Cutting Head

Replaceable oscillating knife

Safety

High sensitivity infrared induction (optional)

Moving Speed

Max. 1200mm/s

Cutting Speed

Max. 800mm/s(please set the speed according to the material)

Material Applicable

Corrugated paper, PVC expansion sheet, KT board, foam board,grey paperboard, cardboard, vehicle sticker, adhesive sticker etc.

Cutting Depth

Max 30mm (depends on the material)

Material Fixing Method

Strong power vacuum absorption and intelligence Partition

Resetting Positioning Accuracy

Max 0.01mm

Mechanical Precision

Max 0.02mm

Drive System

Steel Simultaneous Belt, Japna Panasonic servo motor,HIWIN guide rail,synchronous belt, Taiwan ball screw

Control System

Trocen control system

Operation Mode

Op worktable + data output control software (The op worktable has two type: connected and separated)

Display

English LCD

Command

HP-GL compatible format

Buffering Capacity

Standard--2GB

Machine total power

12KW

Max Working Size

2500*1600

Rated voltage

380V

vaccum pump

9KW

Knife box

20 pieces for new customer

Body dimension

3391*2423*1235mm


Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance.

Whole machine is welded with thick square seamless steel structure and treated with high temperature
