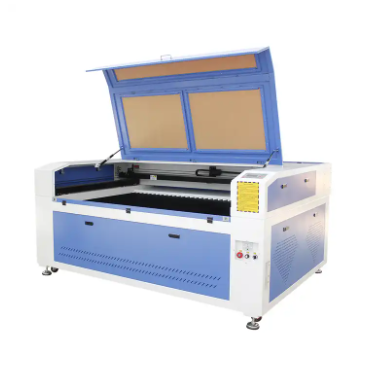

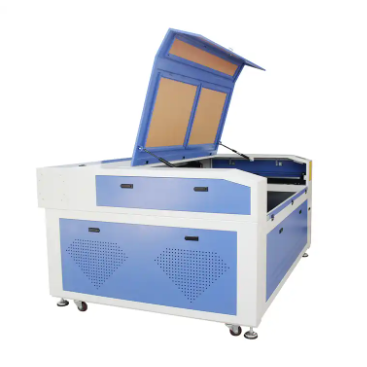

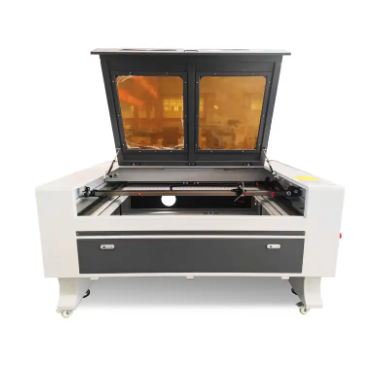

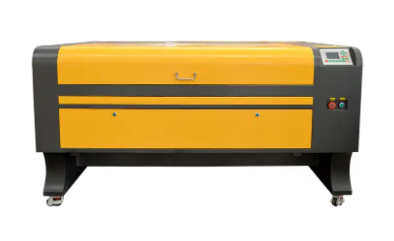

1610 Co2 Laser Engraving & Cutting Machine Large Working Area Double Heads

1610 Co2 Laser Engraving & Cutting Machine Large Working Area Double Heads


1610 Co2 Laser Engraving & Cutting Machine Large Working Area Double Heads



Model

1610

Working area

1600*1000mm

Laser type

sealed co2 glass laser tube

Laser power

60W/80W/100W/150W/180W/300W/600W (Optional)

Engraving speed

0-1500mm/s

Cutting speed

0-400mm/s

Cutting thickness

0-30mm ( depends on materials)

Resolution rate

±0.05mm

Data transfer interface

USB2.0

Working voltage

220v±10% 50hz 110v±10%60hz

Up and down worktable

Up and down 550mm adjustable

Software

RdworksV8/ CorelDraw/AutoCAD

Working table

honeycomb or aluminum knife

Supported graphic formats

BMP PCX TGA TIF PLT CDR

Working temperature

0-45°C

Working humidity

5%-90%

Rsolution ratio

<4500DPI

Applicable materials

Fabric, leather etc Fexible material

Package

Packing in export wooden cases

Assistant Equipment

water chiller/ Exhaust Fan / Air Pump


parameters

4040

4060/6040

9060

1080

1310/1390

1610/1690

working area

400*400mm

400*600mm

900*600mm

1000*800mm

1300*1000mm

1600*1000mm

electric lifting

YES

YES

YES

YES

YES

YES

Honey comb

YES

YES

YES

YES

YES

YES

knife  banding

——

——

——

——

YES

YES

stepping motor

42

42/57

42/57

57

57

57

extraction fan

38W

38W

38W

38W

550W

550W

Min line width

≤0.15mm

Positon accuracy

0.01mm

Repetition accuracy

0.02mm

Guide rail

12mm Taiwan (X-axis, Y-axis)

15mm Taiwan (X-axis, Y-axis)

Mainboard

RD7132 , M2

RD6445 ,RD7132

Laser head

golden

golden/black

golden/black

black

Laser power

40W, 50W

50W,  60W, 80W, 100W

80W, 100W, 130W, 150W


Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea or by train.
