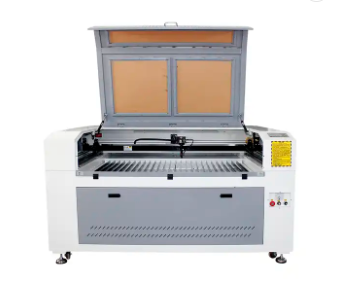

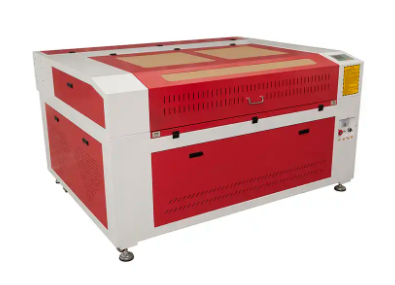

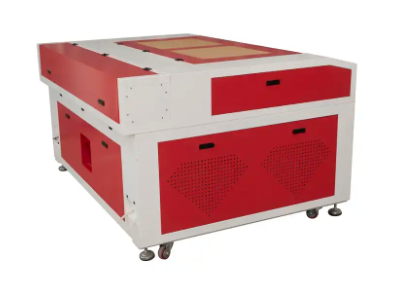

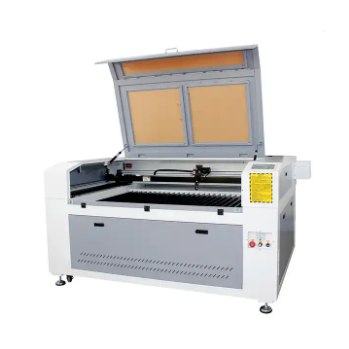

1390 Laser Cutting Machine Co2 Laser Engraver for Nonmetal

1390 Laser Cutting Machine Co2 Laser Engraver for Nonmetal


1390 Laser Cutting Machine Co2 Laser Engraver for Nonmetal



CO2 Laser Engraving Machine with different working area, laser power or working table, which application is engraving and cutting on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of non-metal materials. 1390 laser cutting machine are widely used in clothing, shoes, luggage, computer embroidery clipping, model, electronic appliances, toys, furniture, advertising decoration, packaging and printing, paper products, handicrafts. Household appliances, laser processing and other industries.


1. Blade or honeycomb table.Two kinds of of tables are available for different material. 2. CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, long service time. 3. Imported lens and mirrors. High transmittance, good focusing, reflection effect. 4. Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power. 5. High accuracy stepper motors and drivers. Belt transmission. 6. Tiwan Hiwin Linear square guide rails, higher precision. 7. Open style, the front and back of the machine is open which is possible for longer material, breakthrough the limit of the workpiece length. 8. Rotate cutting available.


Model

1390

Worktable

honeycomb or blade

Eneraving area

1300*900mm

Laser Power

60w/80w/ 100w/ 150w / 300w

Engraving Speed

0-60000mm/min

Engraving Depth

5mm

Cutting Speed

0-5000mm/min

Cutting Depth (Acrylic)

0-30mm (acrylic)

Up and down work table

Ec Up and down 550mm adjustable

Minimum Shaping Character

1*1mm

Resolution Ratio

0.0254mm (1000dpi)

Power Supply

220V(or110V)+/-10% 50Hz

Resetting Positioning

Accuracy less than or equal to 0.01mm

Water protecting sensor and alarm

Yes

Operating Temperature

0-45℃

Operating Humidity

35-70℃

Graphic Format Supported

PLT/DXF/BMP/JPG/GIF/PGN/TIF

Operation System

Windows 98/ME/2000/XP/VISTA/Windows 7/8

Software

RDWorks/LaserCAD

Engraving on Curve Surfaces(Yes/No)

No

Control Configuration

DSP

Water Cooling(Yes/No)

Yes

Maximum Height Of Materials To Engrave(mm)

120mm

Laser Tube

Sealed CO2 glass laser tube
