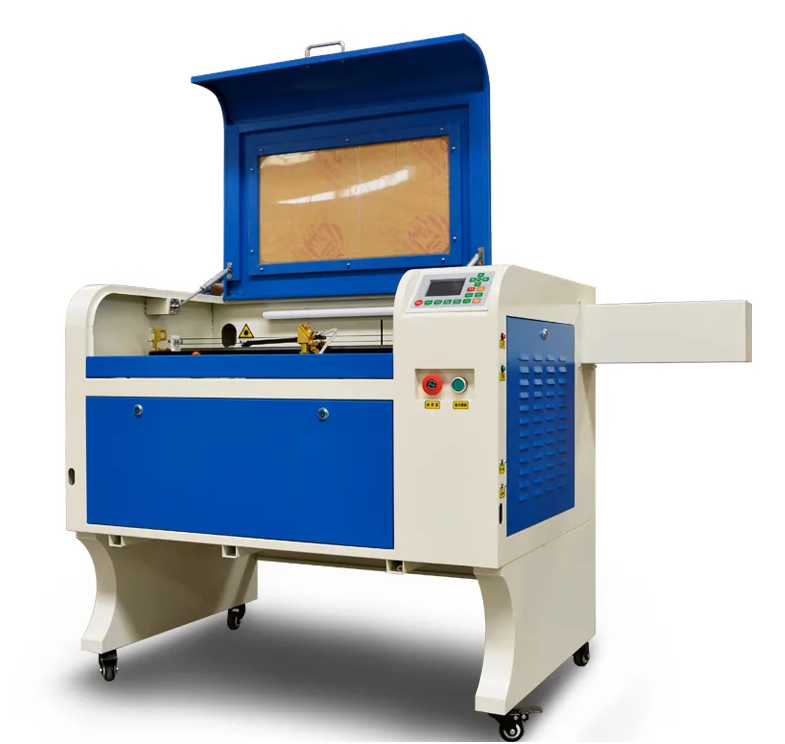

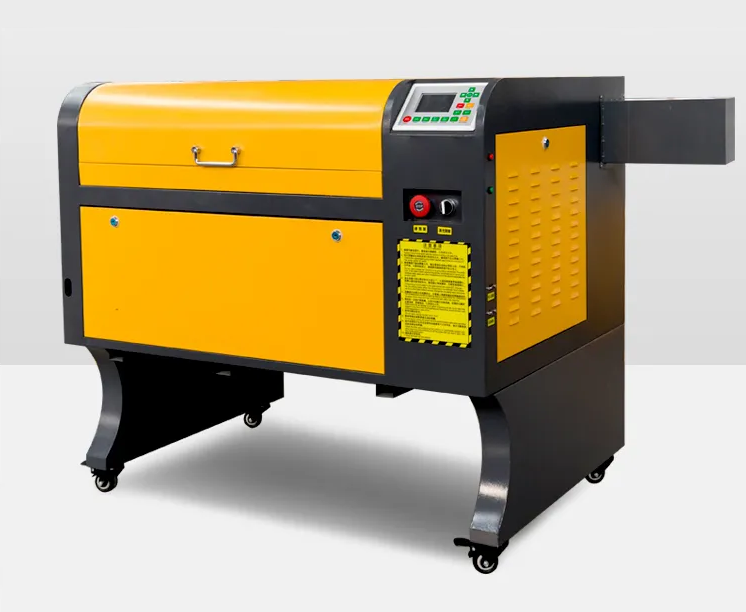

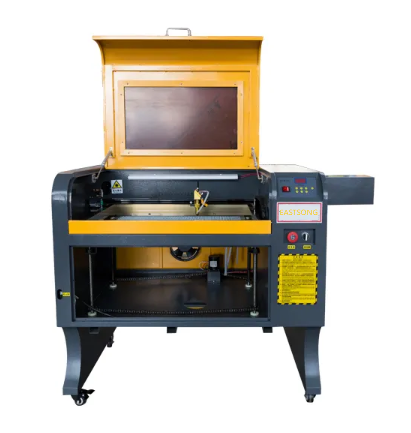

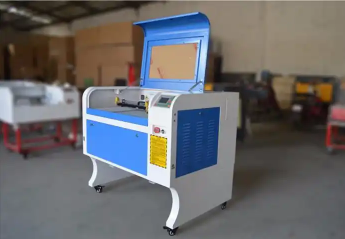

4060 Laser Cutter Laser Source CO2 Small Laser Engraving Machine 50w 60w 80w 100w

co2 laser cutter.png

parameters	4040	4060/6040	9060	1080	1310/1390	1610/1690
working area	400*400mm	400*600mm	900*600mm	1000*800mm	1300*1000mm	1600*1000mm
electric lifting	YES	YES	YES	YES	YES	YES
Honey comb	YES	YES	YES	YES	YES	YES
knife banding	——	——	——	——	YES	YES
stepping motor	42	42/57	42/57	57	57	57
extraction fan	38W	38W	38W	38W	550W	550W
Min line width	≤0.15mm
Positon accuracy	0.01mm
Repetition accuracy	0.02mm
Guide rail	12mm Taiwan (X-axis, Y-axis)			15mm Taiwan (X-axis, Y-axis)
Mainboard	RD7132 , M2			RD6445 ,RD7132
Laser head	golden	golden/black	golden/black	black
Laser power	40W, 50W	50W , 60W ,80W , 100W	80W , 100W , 130W , 150W

Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea or by train.
