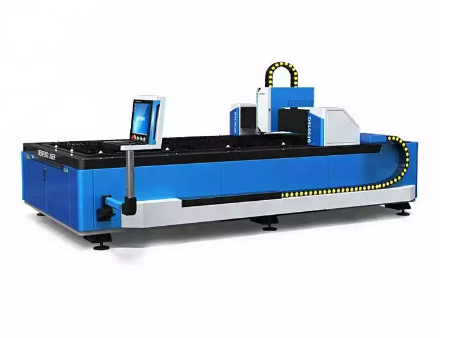

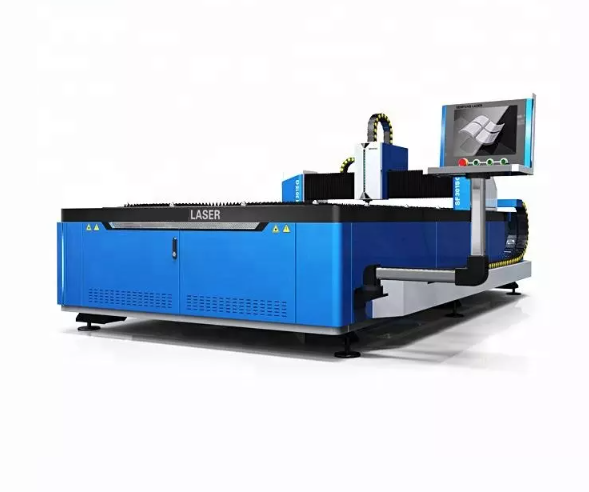

6015G CNC Fiber Laser Cutting Machine For Carbon Steel Stainless Steel
6015G metal laser cutting machine price is stable and reliable light path system and control system. It has integrated design for the whole machine with left and right funnels as collectors to save space. It can cut metal sheets and metal pipes ,and it is cost-saving and has high performance-price ratio.
Model | 6015G | ||
Processing Area | 6000mm*1500mm | ||
Laser power | 300W/500W/750W/1000W/1500W/2000W 5000W/8000W/12000W/30000W/36000W | ||
Positioning accuracy | ±0.05mm | ||
Repeated positioning accuracy | ±0.03mm | ||
X axis stroke | 6000mm | ||
Y axis stroke | 1500mm | ||
Z axis stroke | 100mm | ||
X/Y axis maximum acceleration | 1.0G | ||
Maxumum velocity | 80m/min | ||
Net weight | 4000kg | ||
Dimension | 5522mm*2841mm*1758mm |
1.Stability and reliability of light path and control system
2.High performance,first brand fiber laser device in China;stable,lifespan is over 100000 hours
3.High-quality and efficient cutting,cutting speed is up to 15m/min,with cutting surface is smooth and beautiful
4.Adopt imported servo motor,reducer,gear and rack,ball screw and guide, ensure that the X, Y axis is stable and reliable
